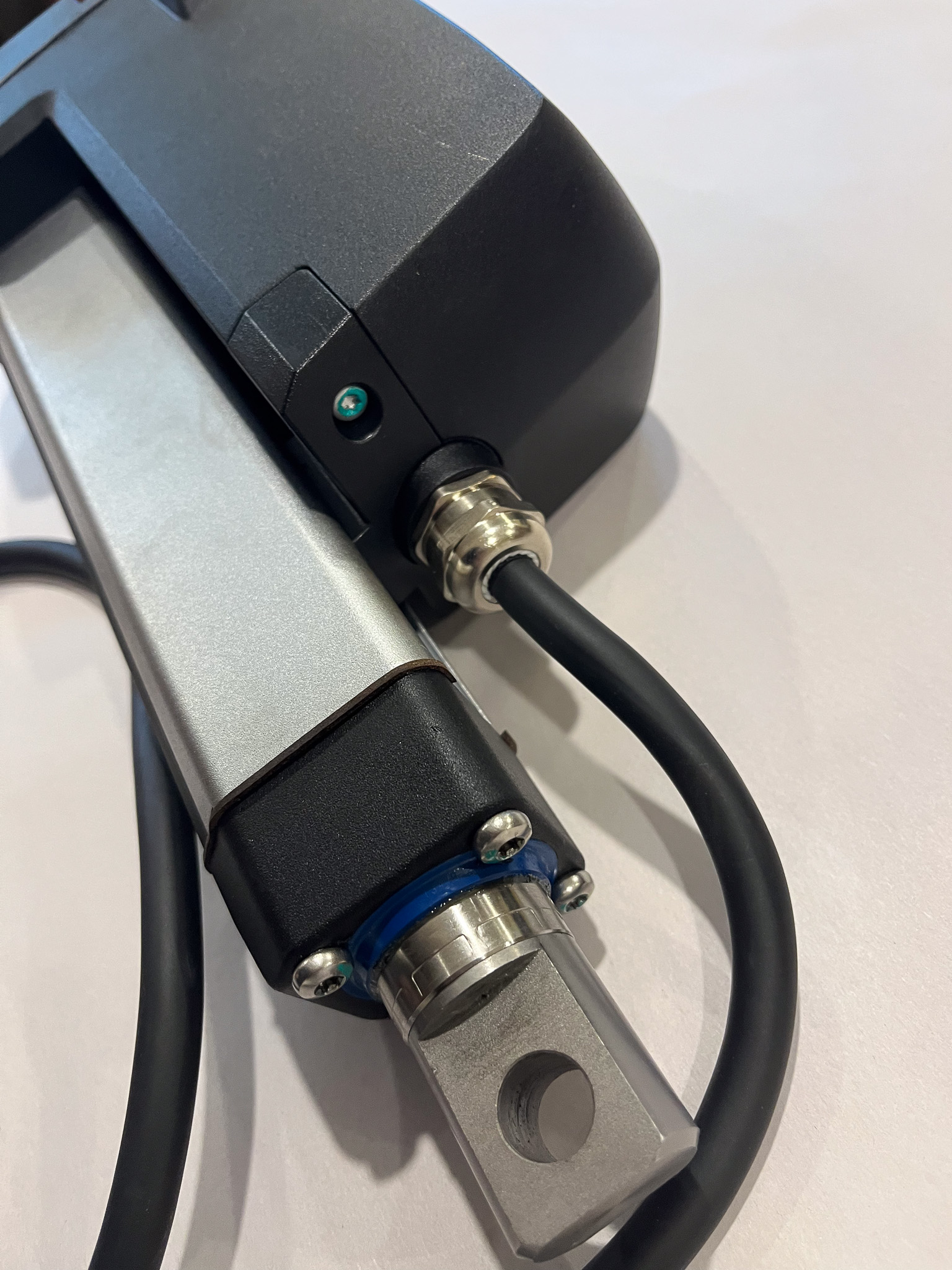

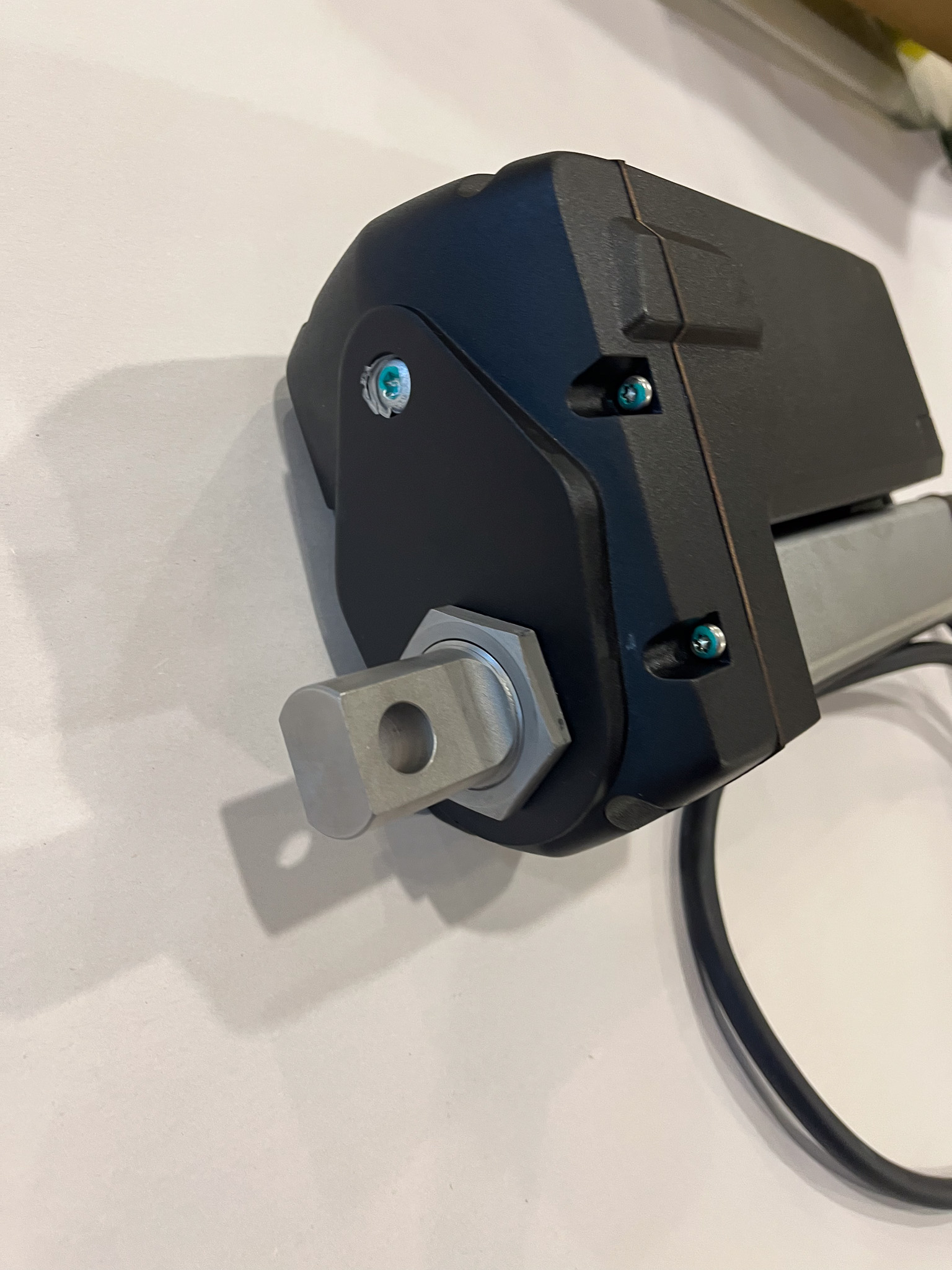

12V Actuator – 6″ stroke, 750 lbs capacity

Description

New replacement actuator for your YTS groomer, roller, or tracksetter!

The new actuator’s advantages are: it has a built-in electric shutoff when it reaches the end of the stroke, it is IP66 weather-resistant, and it is more than twice as fast. It has identical stroke, retracted, and extended lengths as the previous actuator. It has a .75″ mounting point which may be slightly thicker than some older actuators. Mild grinding may be necessary on older Ginzus and E-Rollers.

Specifications:

6″ Stroke.

14.25″ Retracted length.

20.25″ Extended length.

.75″ End points
